Coolback II 600

** Obsolete **

3-Way Active Amplifier Solution with Digital Crossover

 CoolbackII600.pdf Manual

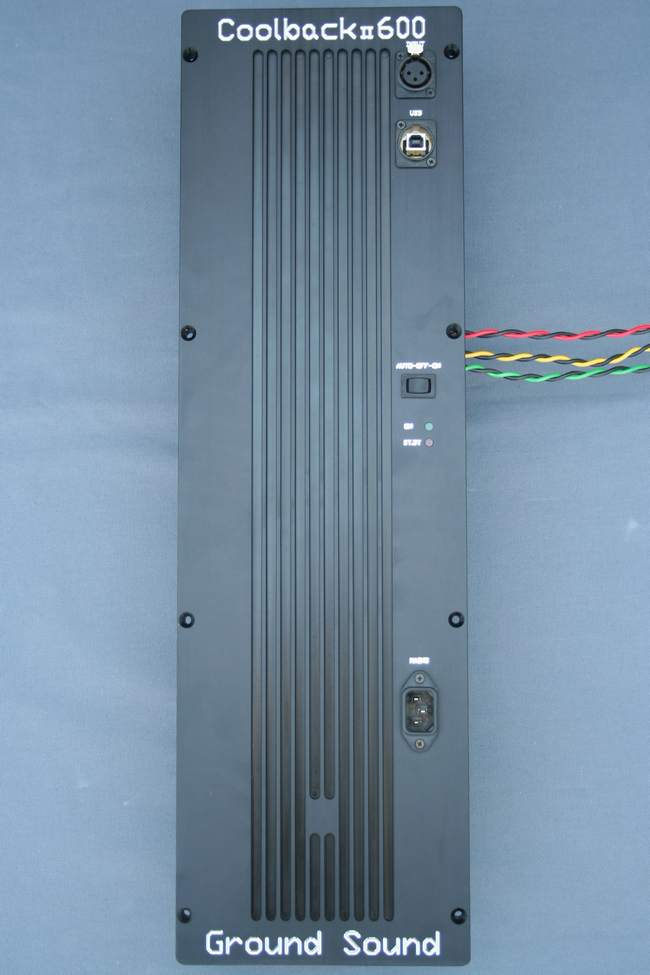

Coolback II 600 is a sophisticated, luxurious and powerful 3-way active “plate amplifier” intended to be a part of the loudspeaker. All electronics assembled on it and acting as a heat sink for the amplifier modules. The only visible on the outside are the connectors (Balanced Input - Neutrik XLR, PC Communication - Neutrik USB and IEC mains Power inlet), Operation Switch (ON-OFF-AUTO) and LED Indicators (ON-StandBy). The Coolback II 600 is 180mm wide and 600mm high - a thickness of 15mm - a flange of maximum 18mm for mounting.

The Coolback II 600 has substituted both the Coolback 300 series and the "old" Coolback 600 series.







Specifications:
  • DCN23 * 24bit 96kHz Digital Crossover Module
  • PA1CC * 100W (8Ω) / 150W (4Ω) Power Amplifier Module (tweeter) - min. load 4Ω
  • PA3CC * 200W (8Ω) / 350W (4Ω) Power Amplifier Module (mid-range) - min. load 3Ω
  • PA3CC * 200W (8Ω) / 350W (4Ω) Power Amplifier Module (bass) - min. load 3Ω
  • PSU8SA * System Power Supply - 8 Nichicon Gold Tune Capacitors 54.400µF/80V
  • TR600 * Silent Design Toroidal Transformer 2 x45Vac / 600VA (rectified +/-63V dc)
  • Distortion : <0.08%
  • Frequency response : 5-45kHz (-3dB)
  • Signal/Noise Ratio : >108dB
  • Thermal protection above 80°Celcius
  • Weight: app. 12kg
  • Cut-out dimensions: 565mm (height) x 145mm (width) - Internal Depth 95mm
  • Overall dimensions: 600mm (height) x 180mm (width) x 110mm (depth)






Suitable loudspeaker projects for our active amplifier Coolback II 600:
The listed projects is all 3-way floor standing loudspeakers of high quality, some minor changes to the box design might be required


  - designed by Kurt Hansen and Robert GS

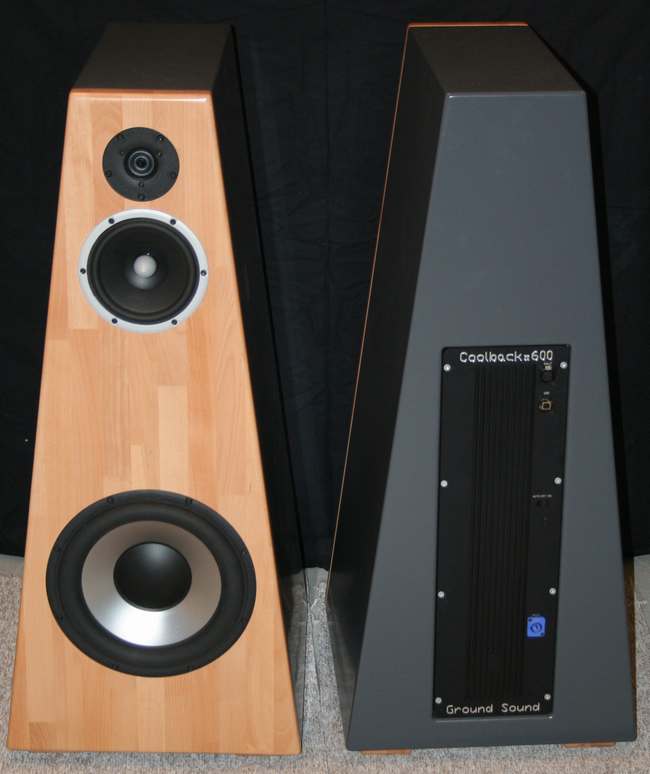

Larger picture XT612 - The XT612 page
Vifa/Peerless loudspeaker project
Vifa XT25BG60-04 - Ringradiator tweeter * 4Ω * 92dB * 2kHz-20kHz * 50W
Peerless HDS Exclusive - 6˝" Nomex cone and phaseplug * 8Ω * 89dB * 40Hz-3kHz * 100W
Peerless XXLS Alu - 12" aluminium cone woofer * 4Ω * 91dB * fs=19Hz * 300W





  Klang + Ton

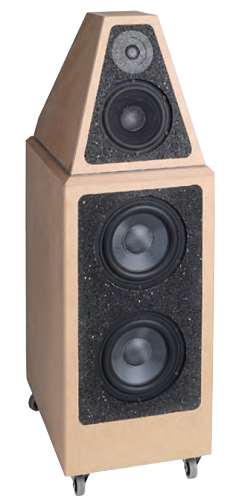

Larger picture A/O - Published in issue 6/2007 + 1/2008 + 2/2008
Wilson Audio Watt/Puppy System8 inspired project developed by Holger Barske & Christian Gather
Visaton KE25SC - 25mm ceramic dome tweeter * 8Ω * 89dB * 800Hz-25kHz * 80W / 140W
ScanSpeak 18W/8545K00 - Carbon fiber/paper 18cm woofer * 8Ω * 84dB * fs=29Hz * 100W
2 x Visaton TIW200XS - Extreme long excursion 8" woofer * 8Ω * 87,5dB * fs=28Hz * 120W

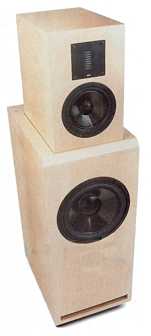

Larger picture Duetta - Published in issue 1/2002
A very popular Klang + Ton reference loudspeaker project developed by the late Heinz Schmitt
Eton ER4 - Air Motion ribbon tweeter * 4Ω * 88dB * 2500Hz-25kHz * 60W
Eton 7-360/37HEX - 7" Hexacone mid-range * 8Ω * 89dB * 40Hz-4kHz * 100W
Eton 11-581/60HEX - 11" Hexacone woofer * 8Ω * 91dB * fs=21Hz * 150W

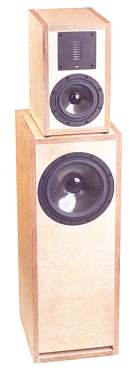

Larger picture Minuetta - Published in issue 5/2005
Cheaper version of the Duetta - smaller mid-range and bass - two choices of tweeter
Eton ER4 - Air Motion ribbon tweeter * 4Ω * 88dB * 2500Hz-25kHz * 60W or
Eton 19SD1 - 19mm silk dome tweeter * 8Ω * 89dB * 2500Hz-30kHz * 80W
Eton 5-880/25HEX - 5" Hexacone mid-range * 8Ω * 87dB * 50Hz-4kHz * 50W
Eton 8-800/37HEX - 8" Hexacone woofer * 8Ω * 89dB * fs=36Hz * 120W

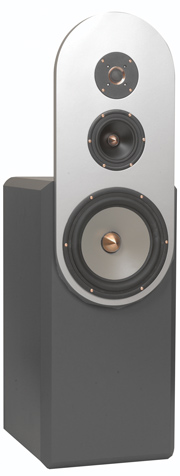

Larger picture ExMotion 04 - Published in issue 6/2003
Loudspeaker project with dipole mid-range and closed box bass
Excel T25CF001 - 25mm fabric dome tweeter * 6Ω * 91dB * 2000Hz-25kHz * 90W
Excel W15CH001 - 15cm magnesium mid-range * 8Ω * 85dB * 50Hz-3kHz * 70W
Excel W 26 FX 001 - 26cm aluminium/magnesium woofer * 8Ω * 87dB * fs=20Hz * 150W





  Hobby HiFi

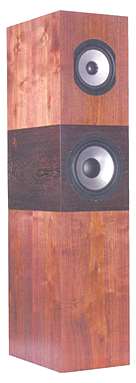

Larger picture Cumulus - Published in issue 5/2004
High End loudspeaker project developed by Bernd Timmermanns
Thiel/Accuton SC3 - High End Coaxial driver * 4Ω * 90/87dB * 800Hz-25kHz * xxW
Visaton AL200 - 8" aluminium woofer * 8Ω * 88dB * fs=32Hz * 120W

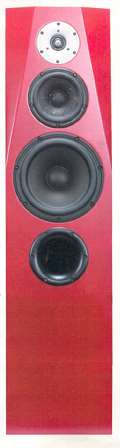

Larger picture Faktum - Published in issue 4/2007
Super loudspeaker project developed by Bernd Timmermanns
ScanSpeak R2904/700000 - Ringradiator tweeter * 8Ω * 88dB * 2500Hz-25kHz * 60W or
ScanSpeak 15M 4531 K00 - 15cm mid-range * 8Ω * 89dB * 40Hz-4kHz * 100W
ScanSpeak 22W 8851 T-00 - 22cm woofer * 8Ω * 91dB * fs=21Hz * 150W

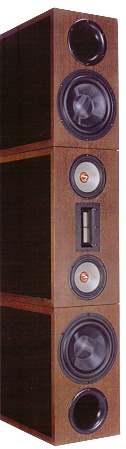

Larger picture Audimax - Published in issue 3/2007
Powerful loudspeaker project developed by Bernd Timmermanns
Audaphon Neo Pro 5i - Hornloaded ribbon tweeter * 7Ω * 96dB * 650Hz-40kHz * 60W
2 x Excel W18EX001 - 18cm magnesium mid-range * 8Ω * 88dB * 40Hz-2,5kHz * 100W
2 x Visaton TIW250XS - Extreme long excursion 10" woofer * 8Ω * 89dB * fs=31Hz * 200W



Larger picture Mezzoforte updated - Published in issue 5/2005
Loudspeaker project developed by Bernd Timmermanns
Visaton SC10N8 - 25mm fabric dome tweeter * 8Ω * 90dB * 1000Hz-20kHz * 100W
Visaton W170S8 - 17cm mid-range * 8Ω * 86dB * fs=36Hz * 50W
Visaton W250S8 - 25cm woofer * 8Ω * 90dB * fs=31Hz * 100W





  Acoustic Design Magazine

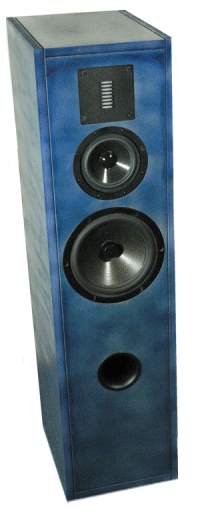

Larger picture Blue Note - Published in issue Ausgabe 6
Eton driver loudspeaker project developed by Udo Wohlgemuth
Eton ER4 - Air Motion ribbon tweeter * 4Ω * 88dB * 2500Hz-25kHz * 60W
Eton 5-880/25HEX - 5" Hexacone mid-range * 8Ω * 87dB * 50Hz-4kHz * 50W
Eton 8-472/32HEX - 8" Hexacone woofer * 8Ω * 88dB * fs=24Hz * 90W





  Dansk Audio Teknik - Danish Shop in Copenhagen

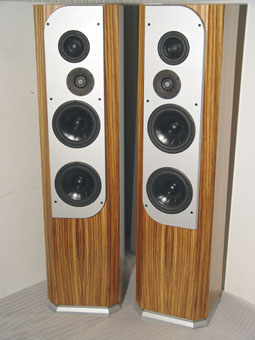

Larger picture Amadeus TNT S7
ScanSpeak driver loudspeaker project
R2904/7000 00 - Ringradiator tweeter * 8Ω * 88dB * 2500Hz-25kHz * 60W
ScanSpeak 12M/4631G00 - 12cm sliced paper cone * 8Ω * 87dB * 50Hz-4kHz * 50W
2 x ScanSpeak 18W/8531G00 - 18cm sliced paper cone * 8Ω * 89dB * 40Hz-4kHz * 100W

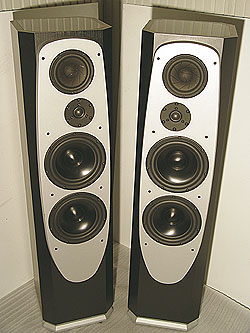

Larger picture Amadeus TNT S9
ScanSpeak driver loudspeaker project
R2904/700000 - Ringradiator tweeter * 8Ω * 88dB * 2500Hz-25kHz * 60W
ScanSpeak 15M/4531K00 - 15cm sliced paper cone * 8Ω * 89dB * 40Hz-4kHz * 100W
2 x ScanSpeak 22W/8857T00 - 22cm aluminium cone woofer * 8Ω * 86dB * fs=23Hz * 170W
